Axis Freeride Carbon Rear Foil Wings

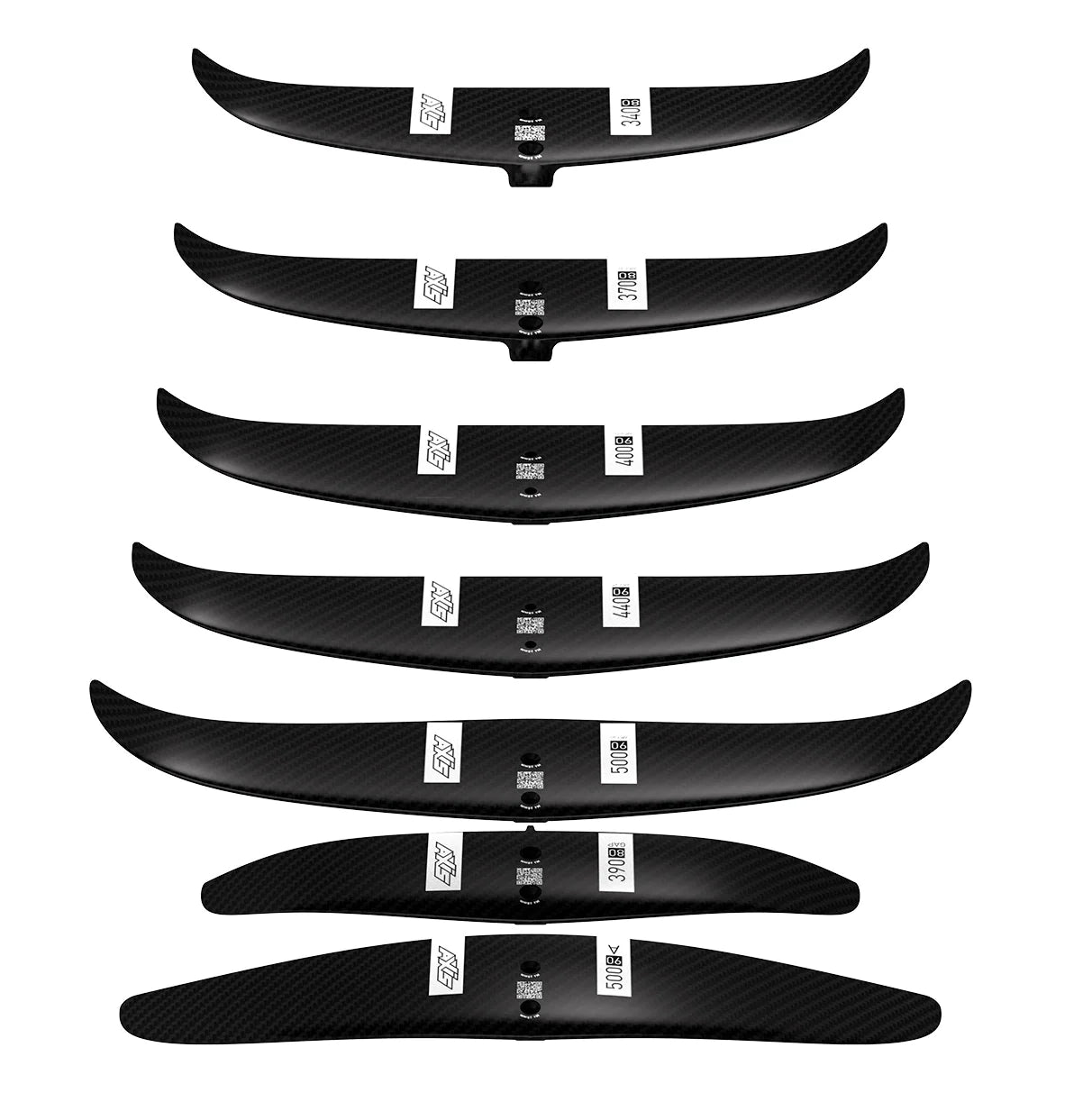

The Axis Freeride Carbon Rear wing is available in sizes 400, 440 and 500A:

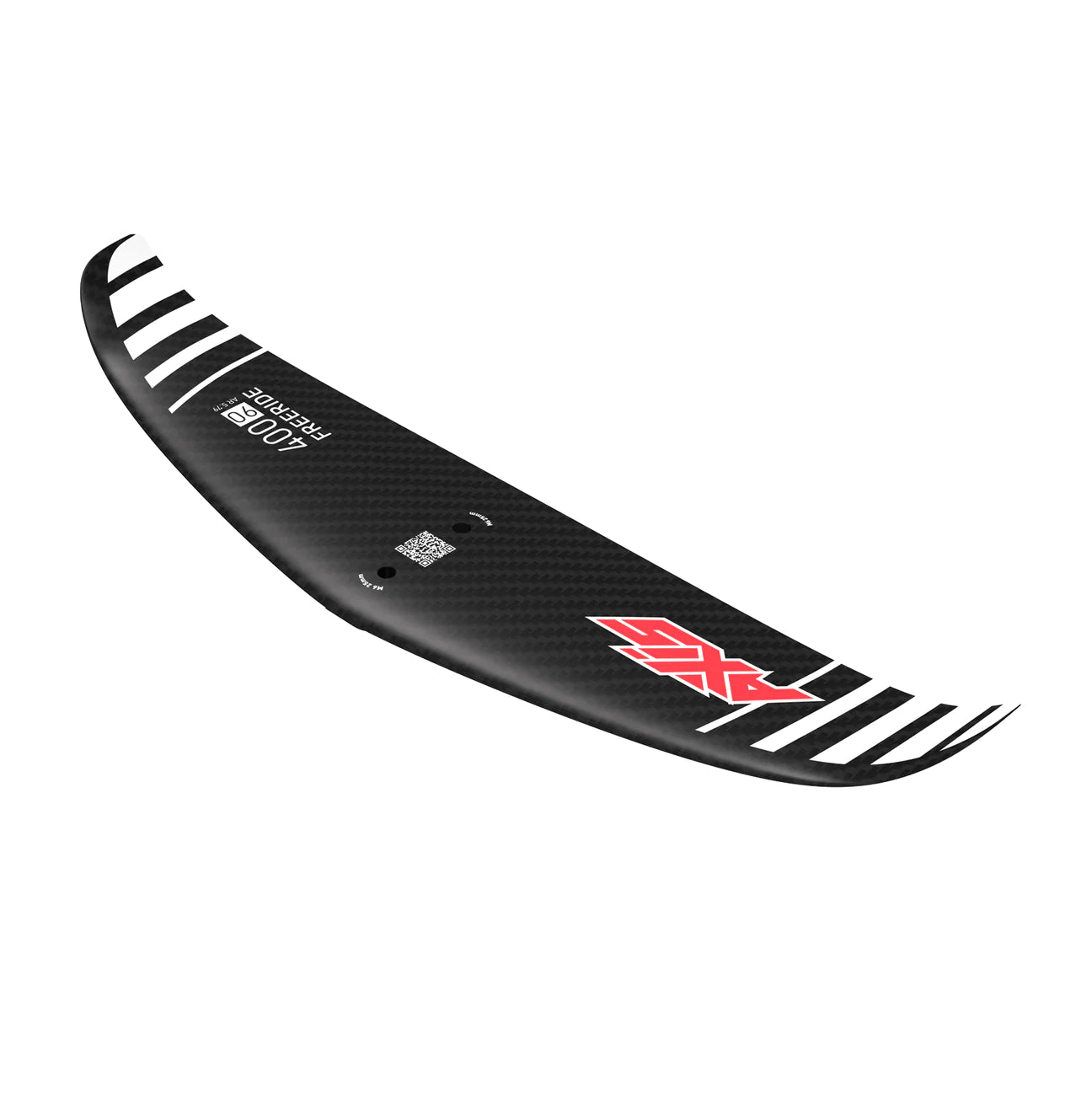

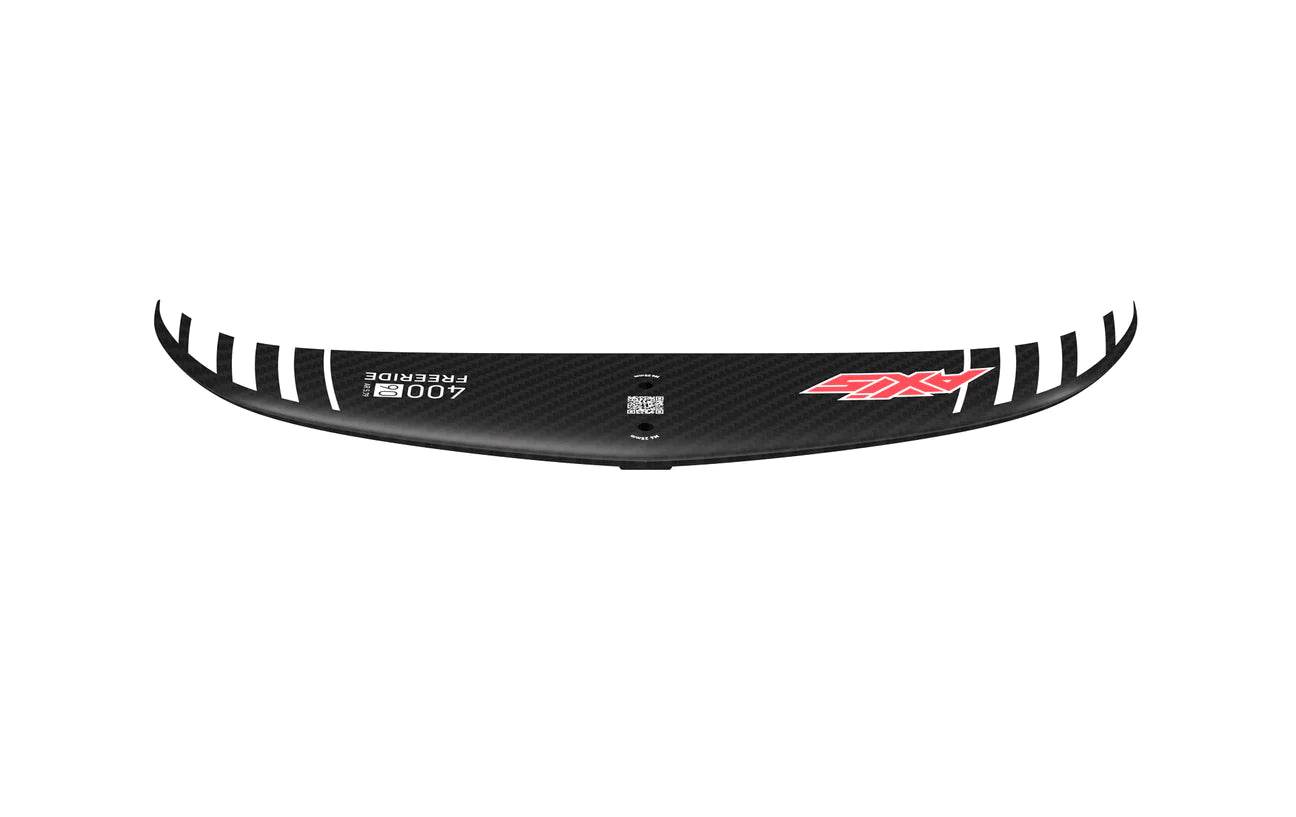

The AXIS 400 Carbon Rear Wing is the carving specialist. Even looser than the 440 rear wing, it's the most turny and performance oriented rear wing on our collection.

A must have with the 750 and 680 front wings, but also works miracles with the bigger wings, making the ride more playful and high performing. And when combined with the ULTRA Short Red fuselage then your ride gets looser than ever!

• WINGSPAN: 400 mm / 15.75 in
• CHORD: 90 mm / 3.54 in
• ASPECT RATIO: 5.79
• ACTUAL AREA : 291.18 cm² / 45.13 IN²
• PROJECTED AREA: 276.54 cm² / 42.86 IN²
• VOLUME: 175.35 cm³ / 10.70 IN³

The AXIS 440 rear wing is the allround rear wing that does everything well. It feels looser than the 500mm rear wing, it's playful and overall high performing.

You can combine the 440 rear wing with either the Standard, Short or ULTRA Short Red Fuselages for quicker turning and looser feel.

• WINGSPAN: 440 mm / 17.32 in
• CHORD: 90 mm / 3.54 in
• ASPECT RATIO: 6.37
• ACTUAL AREA : 318.94 cm² / 49.44 IN²
• PROJECTED AREA: 303.97 cm² / 47.12 IN²
• VOLUME: 192.81 cm³ / 4.97 IN³

The AXIS 500 Carbon Anhedral Rear Wing (500A), is the ideal rear wing for Wind Foiling. Combined with either the 1020, 1000, 920, 900 or 820, the 500 Anhedral gives you a balanced and stable ride while wind foiling.

• WINGSPAN: 500 mm / 19.69 in
• CHORD: 90 mm / 3.54 in
• ASPECT RATIO: 7.17
• ACTUAL AREA : 362.33 cm² / 56.16 IN²
• PROJECTED AREA: 348.72 cm² / 54.05 IN²
• VOLUME: 223.43 cm³ / 13.63 IN³
